saulgoode · **Posted:** Sat Sep 26, 2015 12:12 am **(#41)**

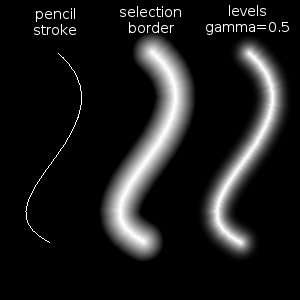

The following image shows how the selection progresses within the script. From left to right the image shows the result of 1) stroking the path with a 1-pixel pencil, 2) bordering the selection by "20", 3) applying Levels with gamma equal to "0.5".

Attachment:

steps.png [ 10.36 KiB | Viewed 1144 times ]

I do not see any evidence of a "dip" in the resulting selection mask.

PegLeg44 · **Joined:** Feb 14, 2012 **Posts:** 426

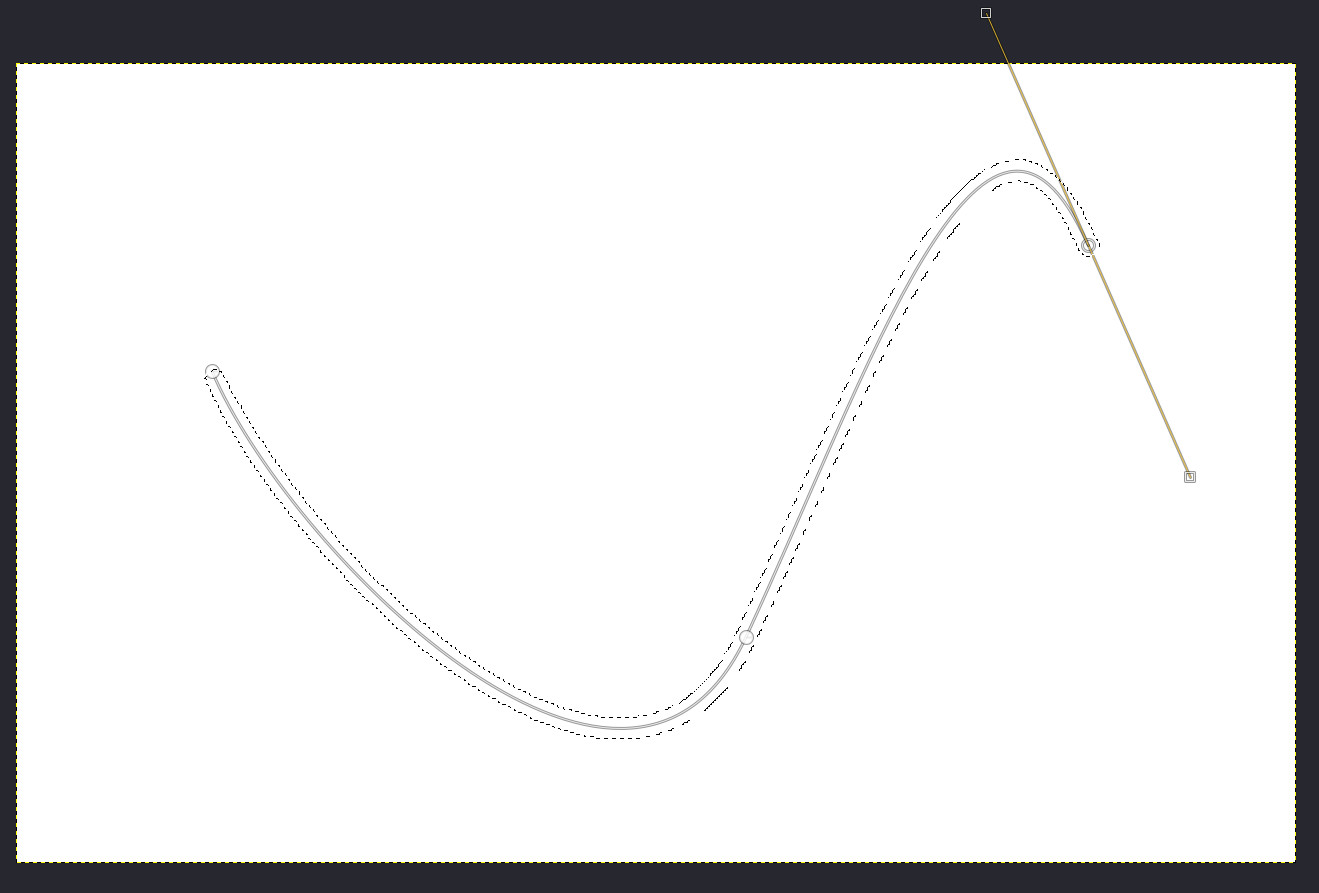

If I take out the word Radius from the line (gimp-selection-border image radius) then it gives me some error messages and I end up with a 10 pixel selection on the canvas like this: I suspect that somehow this is the selection that is being used by the rest of the script to do the border function. Or maybe my computer isn't doing the line that says (gimp-selection-none image) that comes after it.

Attachment:

NoRadius.jpg [ 77.53 KiB | Viewed 1131 times ]

here

saulgoode · **Posted:** Sat Sep 26, 2015 1:35 pm **(#43)**

Which version of GIMP are you using? Please try using 2.8.14 (if you use an earlier version, you may encounter this bug).

PegLeg44 · **Joined:** Feb 14, 2012 **Posts:** 426

Yay! it works! Thanks!

Attachment:

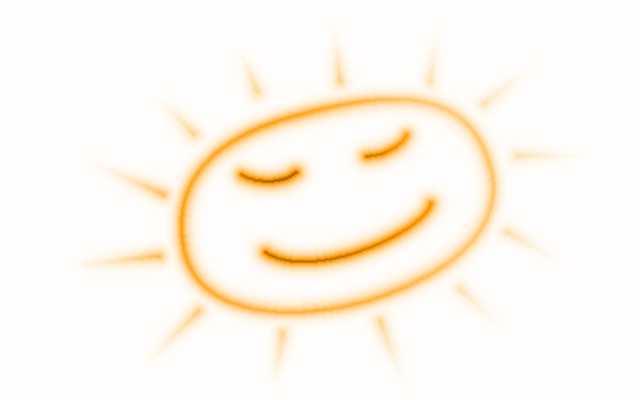

SharpSun.jpg [ 21.38 KiB | Viewed 1112 times ]

I had to overlap the open path for the circle sun because it was creating a blank spot. I drew in the selection with the airbrush black and then did a [Colors] [Map] [Gradient Map].
The program seems to run a little slower though. I had 2.8.10 before.
